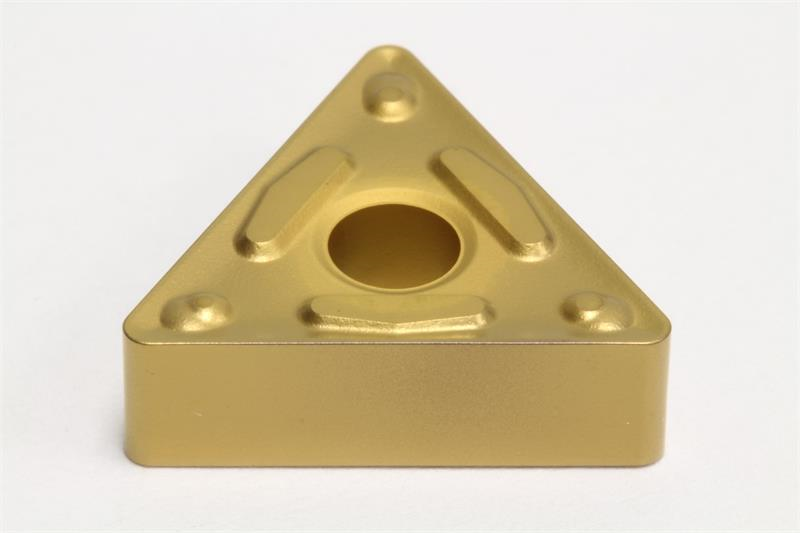

TNMG544 ENG AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG544ENG AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 544
Brand Sumitomo
Thickness 0.2500 Inch
Chipbreaker Type ENG
Grade AC830P
Insert Type Negative
Mounting Hole Diameter 0.2500 Inch
Product Name Turning Insert
Corner Radius 0.0625 Inch
Included Angle 60
Inscribed Circle 0.6250 Inch
Shape Triangular
Relief Angle 0 Degree
Insert Style TNMG
Material Solid Carbide
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Rake Angle 4 Degree
