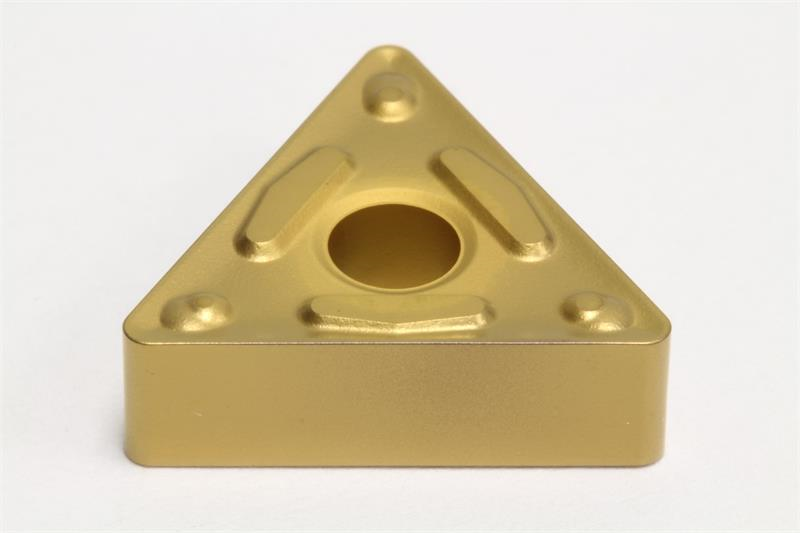

TNMG666 ENG AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG666ENG AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 666
Thickness 0.3750 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 60
Corner Radius 0.0938 Inch
Rake Angle 4 Degree
Relief Angle 0 Degree
Coating/Finish CVD
Shape Triangular
Chipbreaker Type ENG
Insert Type Negative
Material Solid Carbide
Mounting Hole Diameter 0.3126 Inch
Number of Edges 3
Brand Sumitomo
Grade AC820P
Inscribed Circle 0.7500 Inch
Insert Style TNMG
Product Name Turning Insert
