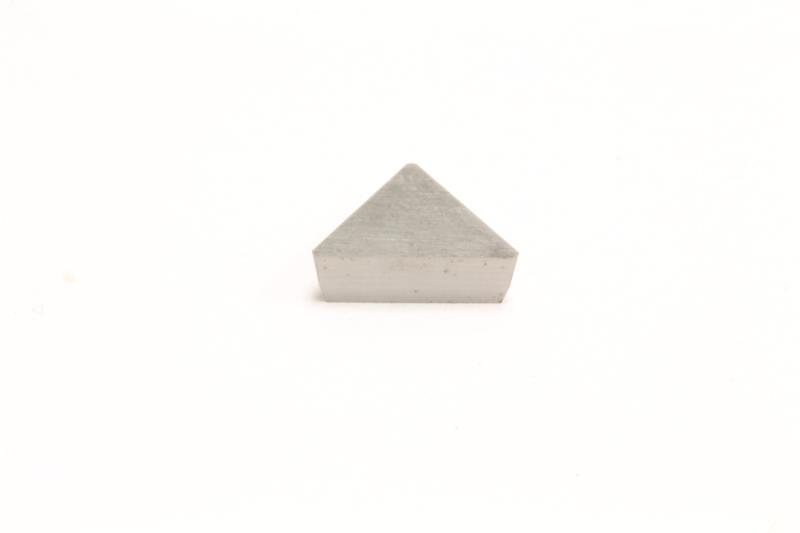

TPG320.5 G10E Grade, Carbide Turning Insert

  • Item Code: TPG320.5 G10E
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 320.5
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish None
Corner Radius 0.0078 Inch
Brand Sumitomo
Chipbreaker Type No
Included Angle 60
Inscribed Circle 0.3750 Inch
Insert Type Positive
Relief Angle 11 Degree
Grade G10E
Number of Edges 3
Product Name Turning Insert
Material Solid Carbide
Shape Triangular
Thickness 0.1250 Inch
Insert Style TPG
