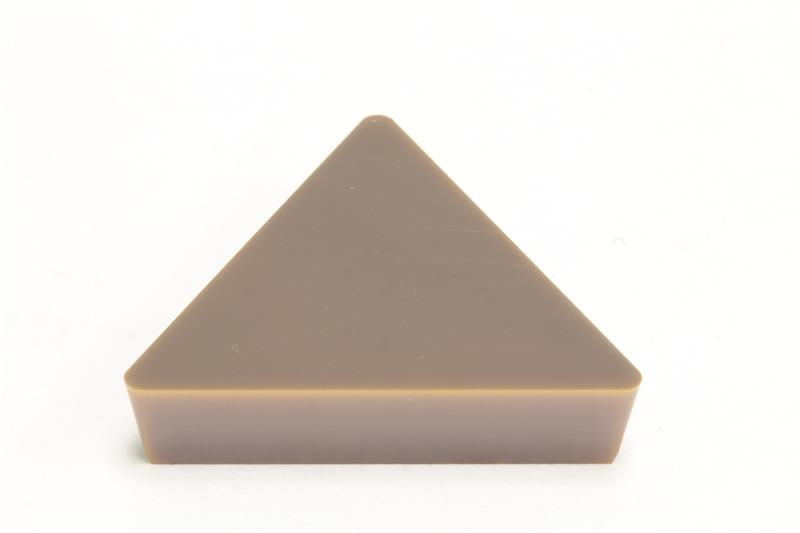

TPG321 AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TPG321 AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style TPG
Insert Type Positive
Relief Angle 11 Degree
Shape Triangular
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC510U
Insert Size 321
Product Name Turning Insert
Thickness 0.1250 Inch
Brand Sumitomo
Corner Radius 0.0156 Inch
Chipbreaker Type No
Included Angle 60
Material Solid Carbide
Inscribed Circle 0.3750 Inch
Number of Edges 3
