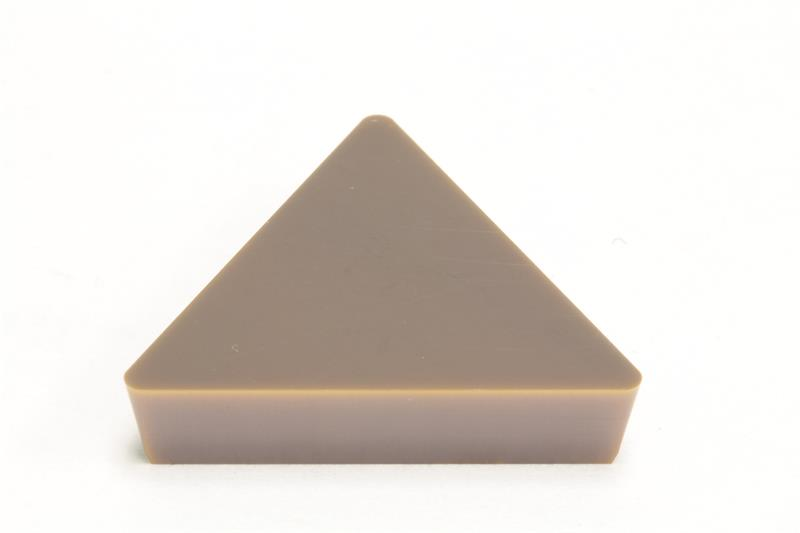

TPG322 AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TPG322 AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type No
Included Angle 60
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Corner Radius 0.0313 Inch
Thickness 0.1250 Inch
Grade AC510U
Shape Triangular
Material Solid Carbide
Insert Type Positive
Number of Edges 3
Relief Angle 11 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Insert Size 322
Brand Sumitomo
Insert Style TPG
