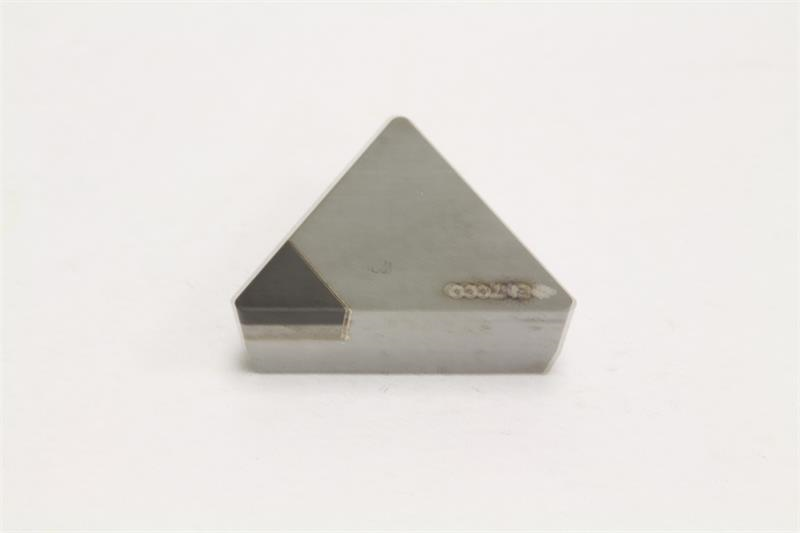

TPG322 BN250 Grade, PCBN Turning Insert

  • Item Code: TPG322 BN250
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Rake Angle 11 Degree
Material PCBN
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Size 322
Product Name Turning Insert
Thickness 0.1250 Inch
Chipbreaker Type Full Tip
Grade BN250
Max Depth of Cut 0.0200 Inch
Number of Edges 3
Shape Triangle
Insert Style TPG
Relief Angle 11 Degree
Coating/Finish None
Corner Radius 0.0313 Inch
Included Angle 60
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Insert Type Positive
