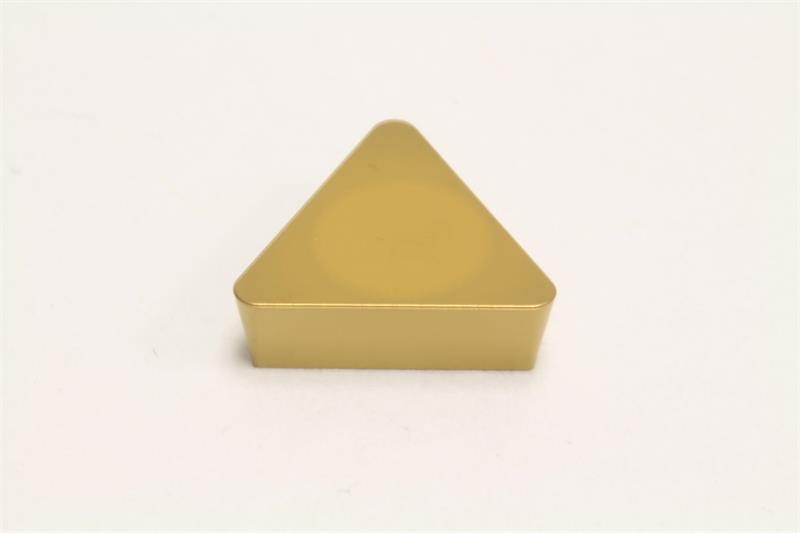

TPG431 AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPG431 AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Material Solid Carbide
Shape Triangular
Corner Radius 0.0156 Inch
Insert Size 431
Insert Style TPG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Chipbreaker Type No
Grade AC820P
Product Name Turning Insert
Relief Angle 11 Degree
Inscribed Circle 0.5000 Inch
Included Angle 60
Insert Type Positive
Number of Edges 3
Thickness 0.1875 Inch
