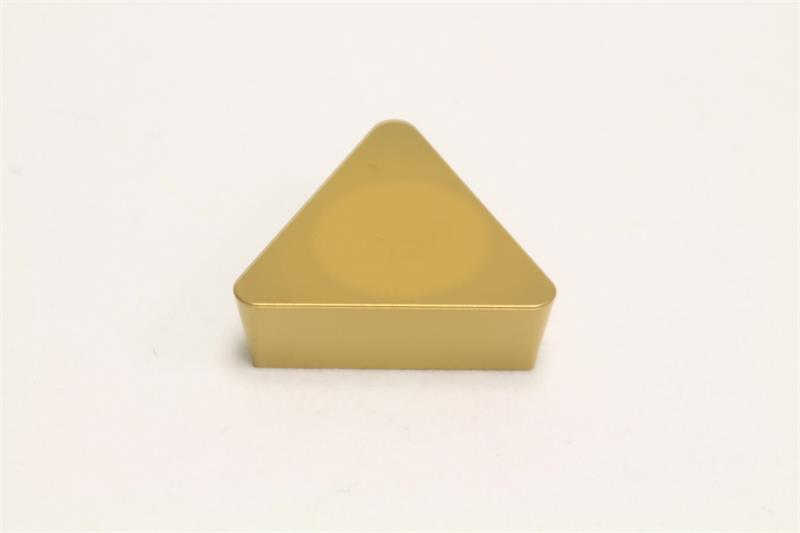

TPG433 AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPG433 AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Number of Edges 3
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Brand Sumitomo
Grade AC820P
Insert Type Positive
Relief Angle 11 Degree
Coating/Finish CVD
Included Angle 60
Insert Style TPG
Insert Size 433
Material Solid Carbide
Chipbreaker Type No
Corner Radius 0.0469 Inch
Shape Triangular
