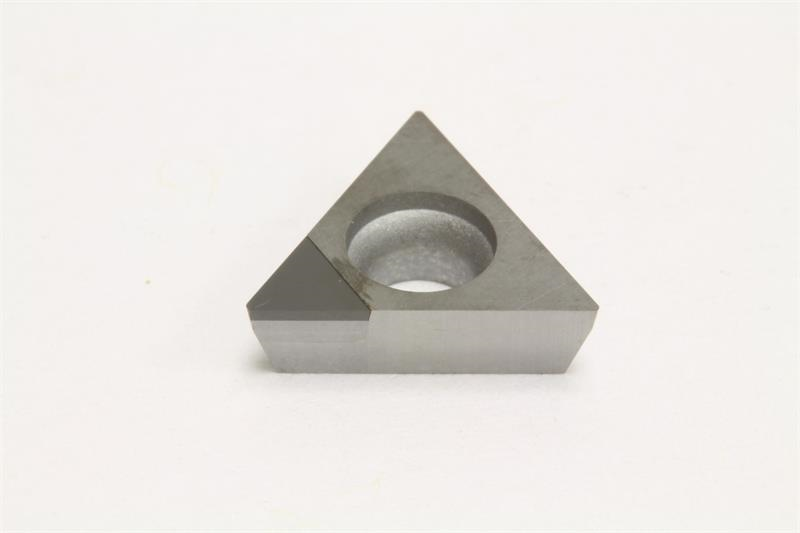

TPGA221 DA150 Grade, Polycrystalline Diamond (PCD) Turning Insert

  • Item Code: TPGA221 DA150
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.

Tech Specs

Back To Top
Insert Style TPGA
Coating/Finish Compound
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Material PCD
Thickness 0.1250 Inch
Mounting Hole Diameter 0.1300 Inch
Grade DA150
Shape Triangle
Included Angle 60
Insert Size 221
Insert Type Positive
Number of Edges 3
Brand Sumitomo
Chipbreaker Type Standard Tip
Product Name Turning Insert
Rake Angle 0 Degree
Relief Angle 11 Degree
