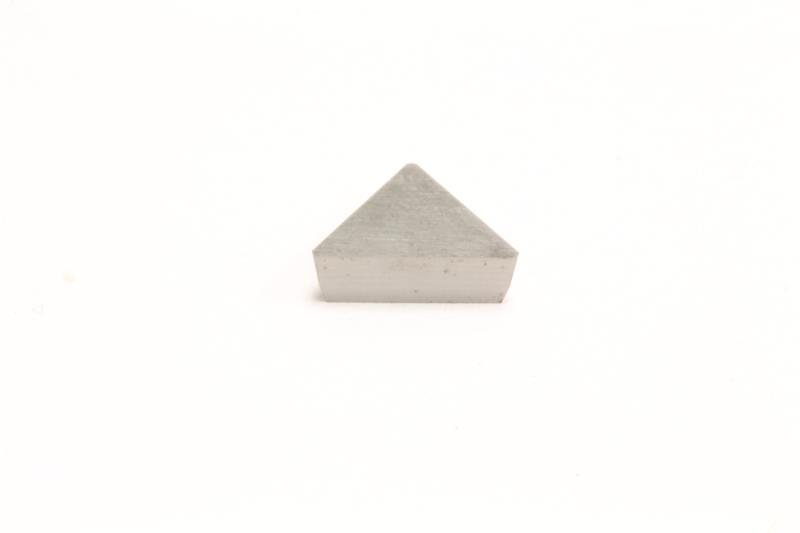

TPGA222 G10E Grade, Carbide Turning Insert

  • Item Code: TPGA222 G10E
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style TPGA
Insert Type Positive
Relief Angle 11 Degree
Material Solid Carbide
Number of Edges 3
Chipbreaker Type No
Corner Radius 0.0313 Inch
Mounting Hole Diameter 0.1300 Inch
Shape Triangular
Brand Sumitomo
Included Angle 60
Product Name Turning Insert
Thickness 0.1250 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade G10E
Inscribed Circle 0.2500 Inch
Coating/Finish None
Insert Size 222
