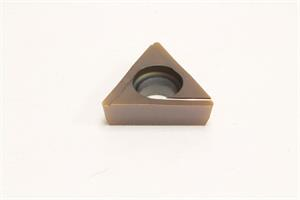

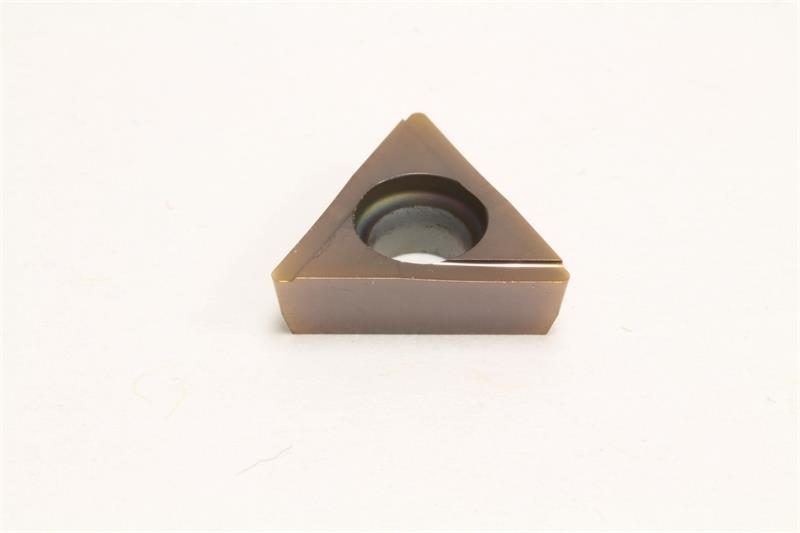

TPGG221 SD AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TPGG221L AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Chipbreaker Type SD
Coating/Finish PVD
Grade AC510U
Included Angle 60
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Mounting Hole Diameter 0.1300 Inch
Shape Triangular
Brand Sumitomo
Product Name Turning Insert
Rake Angle 0 Degree
Relief Angle 11 Degree
Insert Size 221
Insert Style TPGG
Number of Edges 3
Inscribed Circle 0.2500 Inch
Insert Type Positive
Thickness 0.1250 Inch
