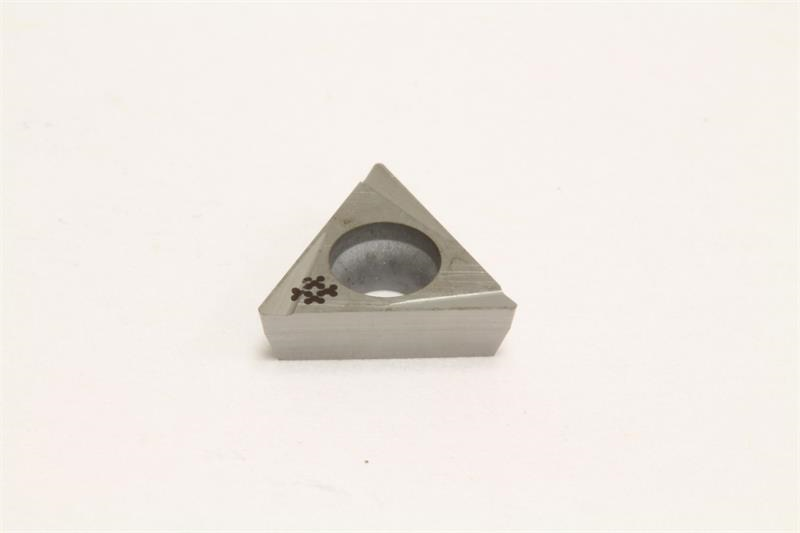

TPGG221 SD G10E Grade, Carbide Turning Insert

  • Item Code: TPGG221L G10E
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade G10E
Brand Sumitomo
Mounting Hole Diameter 0.1300 Inch
Chipbreaker Type SD
Insert Style TPGG
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Material Solid Carbide
Insert Type Positive
Shape Triangular
Thickness 0.1250 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Product Name Turning Insert
Rake Angle 0 Degree
Relief Angle 11 Degree
Coating/Finish None
Included Angle 60
Insert Size 221
Number of Edges 3
