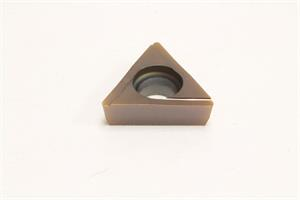

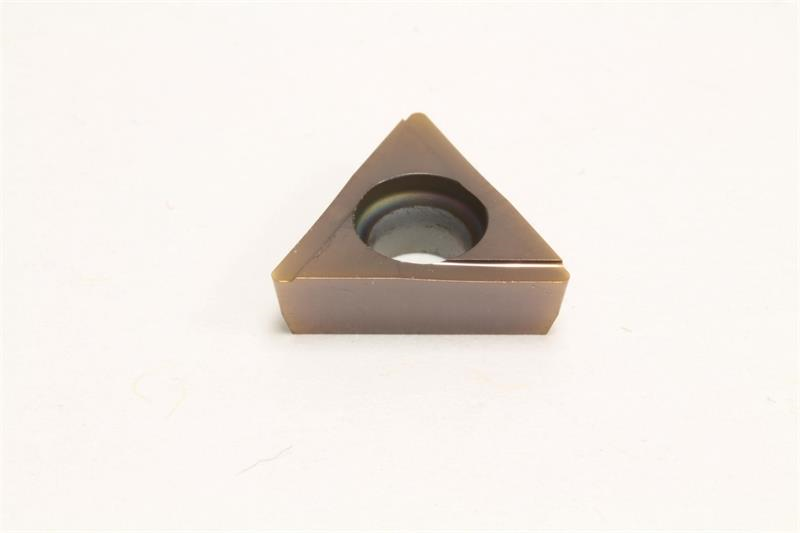

TPGG331 SD AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TPGG331L AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type SD
Insert Style TPGG
Coating/Finish PVD
Grade AC510U
Number of Edges 3
Insert Type Positive
Relief Angle 11 Degree
Shape Triangular
Product Name Turning Insert
Rake Angle 0 Degree
Included Angle 60
Mounting Hole Diameter 0.1693 Inch
Thickness 0.1875 Inch
Brand Sumitomo
Corner Radius 0.0156 Inch
Insert Size 331
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.3750 Inch
Material Solid Carbide
