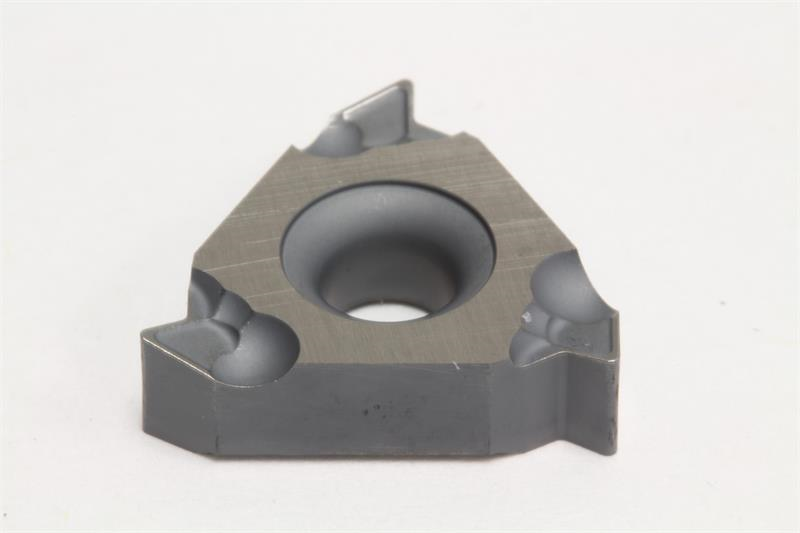

TPGT221 FY AC530U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TPGT221EFC AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style TPGT
Material Solid Carbide
Corner Radius 0.0156 Inch
Shape Triangular
Grade AC530U
Rake Angle 15 Degree
Thickness 0.1250 Inch
Inscribed Circle 0.2500 Inch
Included Angle 60
Mounting Hole Diameter 0.1300 Inch
Insert Size 221
Insert Type Positive
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type EFC
Coating/Finish PVD
Brand Sumitomo
Product Name Turning Insert
Relief Angle 11 Degree
