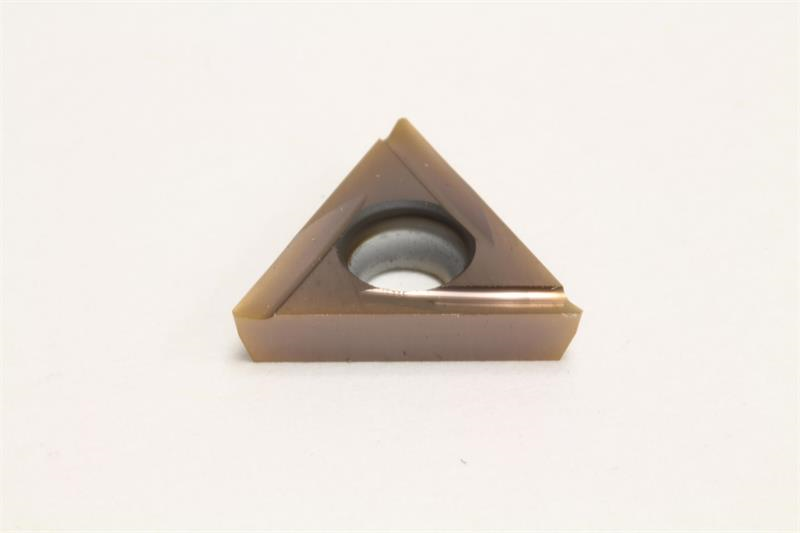

TPGT630.5 FX AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TPGT630.5LFX AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type FX
Inscribed Circle 0.1875 Inch
Insert Size 630.5
Material Solid Carbide
Number of Edges 3
Grade AC510U
Shape Triangular
Mounting Hole Diameter 0.0900 Inch
Insert Type Positive
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Corner Radius 0.0078 Inch
Rake Angle 15 Degree
Included Angle 60
Relief Angle 11 Degree
Brand Sumitomo
Insert Style TPGT
Product Name Turning Insert
Thickness 0.0940 Inch
