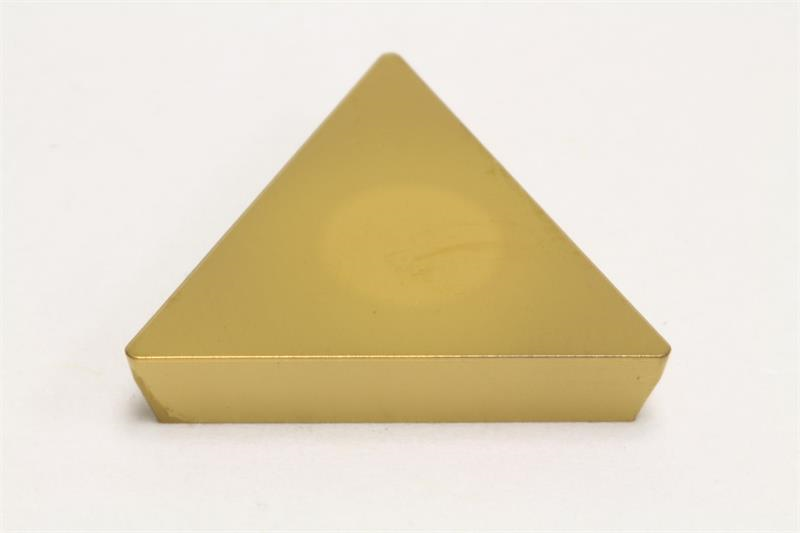

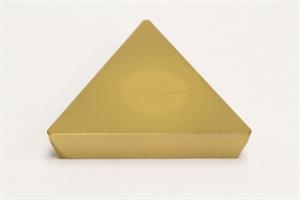

TPMN432 AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMN432 AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0313 Inch
Inscribed Circle 0.5000 Inch
Brand Sumitomo
Chipbreaker Type No
Insert Size 432
Number of Edges 3
Coating/Finish CVD
Shape Triangular
Grade AC820P
Included Angle 60
Product Name Turning Insert
Relief Angle 11 Degree
Insert Style TPMN
Insert Type Positive
Thickness 0.1875 Inch
Material Solid Carbide
