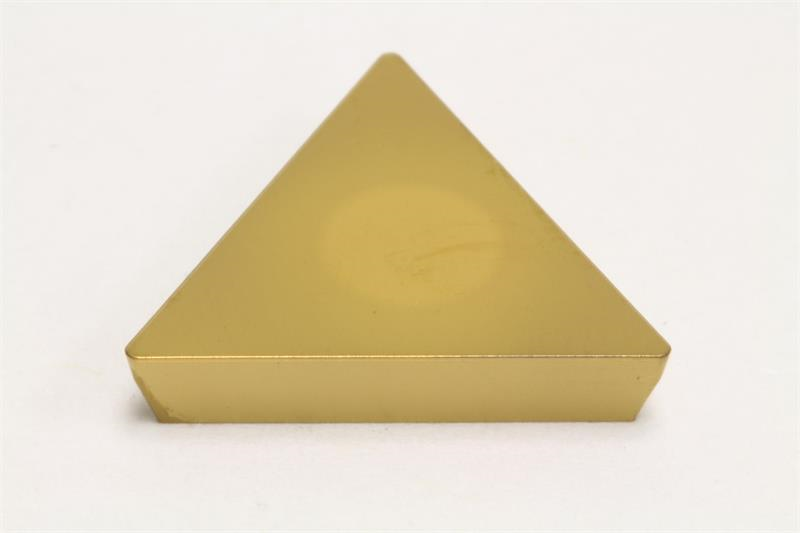

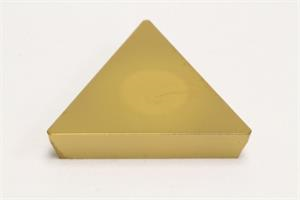

TPMN433 AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TPMN433 AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC700G
Insert Style TPMN
Product Name Turning Insert
Thickness 0.1875 Inch
Coating/Finish Coated
Inscribed Circle 0.5000 Inch
Insert Type Positive
Relief Angle 11 Degree
Brand Sumitomo
Included Angle 60
Insert Size 433
Material Solid Carbide
Number of Edges 3
Shape Triangular
Chipbreaker Type No
Corner Radius 0.0469 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
