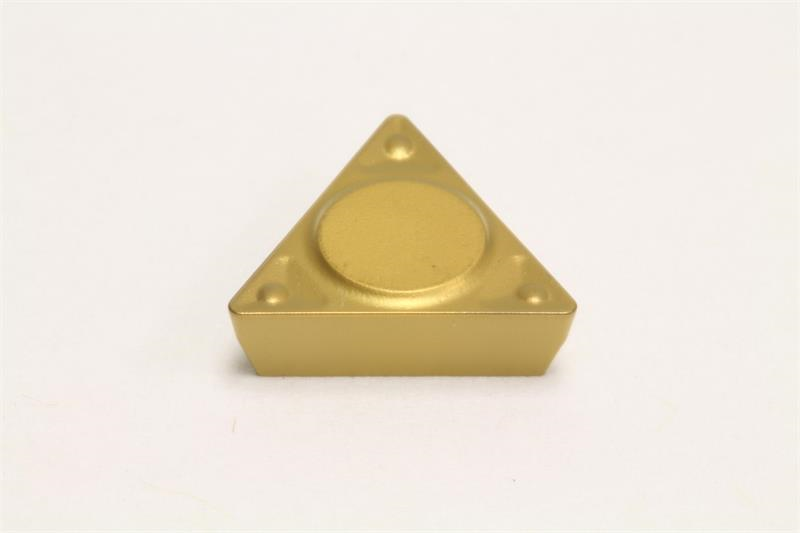

TPMR321 ENF AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMR321ENF AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type ENF
Insert Size 321
Material Solid Carbide
Number of Edges 3
Coating/Finish CVD
Corner Radius 0.0156 Inch
Insert Style TPMR
Shape Triangular
Included Angle 90
Thickness 0.1250 Inch
Grade AC820P
Product Name Turning Insert
Relief Angle 11 Degree
Insert Type Positive
Rake Angle 0 Degree
