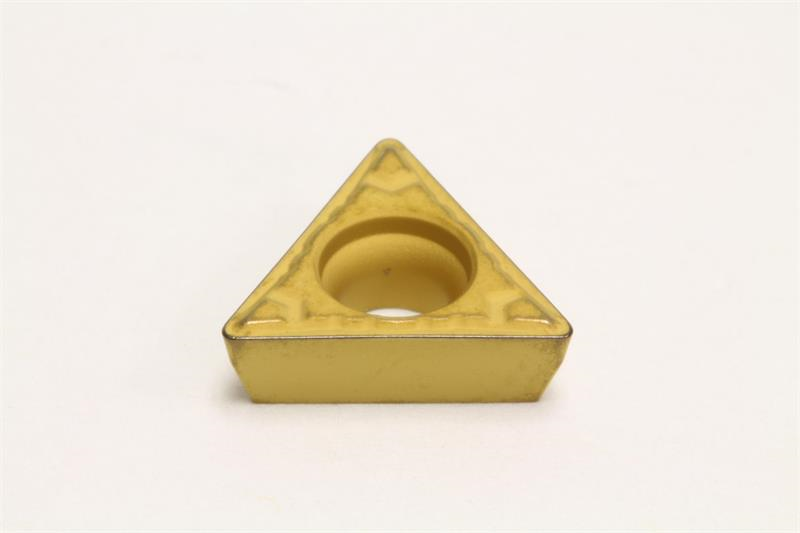

TPMT1.81.51 ELU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT1.81.51ELU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Mounting Hole Diameter 0.1100 Inch
Rake Angle 12 Degree
Shape Triangular
Grade AC820P
Insert Type Positive
Number of Edges 3
Relief Angle 11 Degree
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type ELU
Inscribed Circle 0.2190 Inch
Included Angle 60
Insert Size 1.81.51
Insert Style TPMT
Brand Sumitomo
Corner Radius 0.0156 Inch
Material Solid Carbide
Thickness 0.0940 Inch
