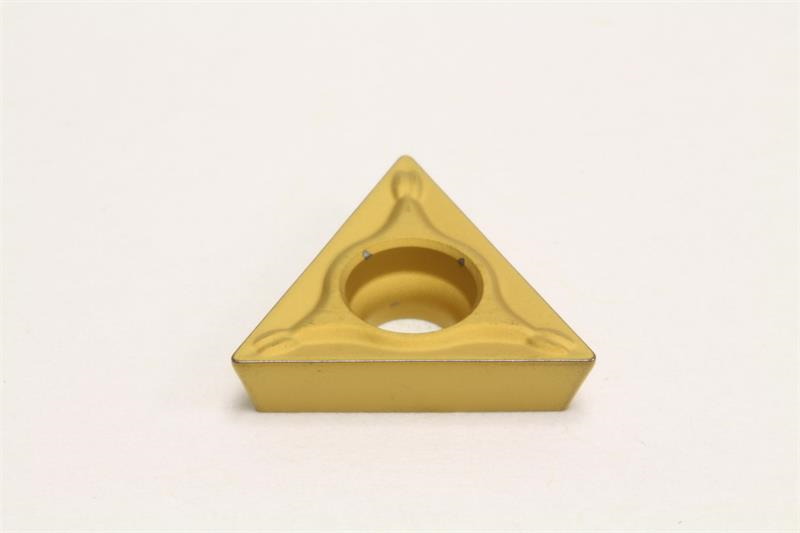

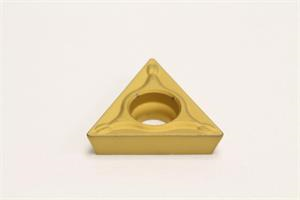

TPMT1.81.51 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT1.81.51ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.1020 Inch
Corner Radius 0.0156 Inch
Inscribed Circle 0.2190 Inch
Included Angle 60
Insert Style TPMT
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Rake Angle 8 Degree
Thickness 0.0940 Inch
Insert Size 1.81.51
Insert Type Positive
Number of Edges 3
Chipbreaker Type ESU
Coating/Finish CVD
Product Name Turning Insert
Relief Angle 11 Degree
Shape Triangular
Grade AC820P
