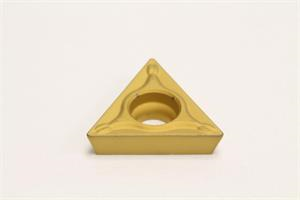

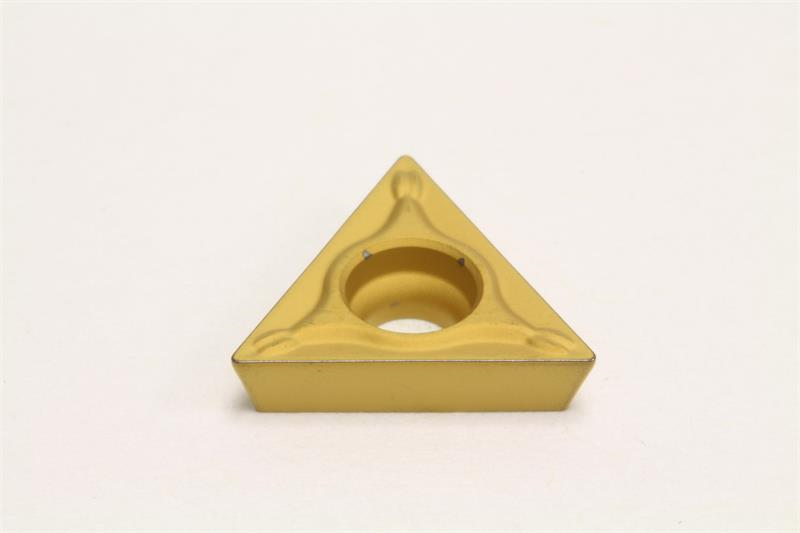

TPMT21.51 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT21.51ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 60
Material Solid Carbide
Thickness 0.0940 Inch
Chipbreaker Type ESU
Coating/Finish CVD
Shape Triangular
Product Name Turning Insert
Insert Style TPMT
Rake Angle 8 Degree
Insert Size 21.51
Insert Type Positive
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Mounting Hole Diameter 0.1070 Inch
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Grade AC820P
Relief Angle 11 Degree
