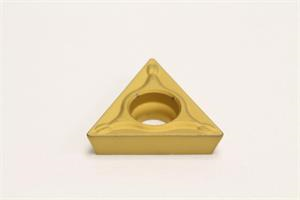

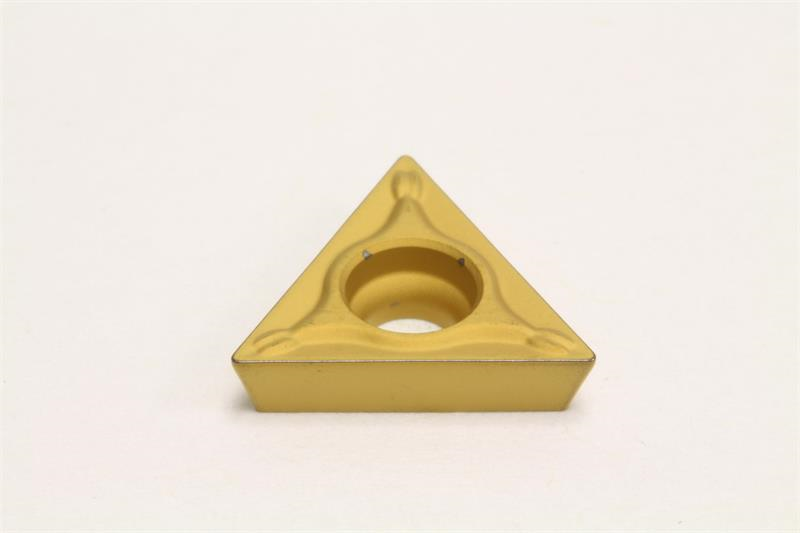

TPMT220.5 ESU AC610M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT220.5ESU AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC610M
Brand Sumitomo
Mounting Hole Diameter 0.1300 Inch
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0078 Inch
Number of Edges 3
Coating/Finish CVD
Insert Size 220.5
Shape Triangular
Chipbreaker Type ESU
Included Angle 60
Material Solid Carbide
Product Name Turning Insert
Relief Angle 11 Degree
Insert Style TPMT
Insert Type Positive
Inscribed Circle 0.2500 Inch
Thickness 0.1250 Inch
