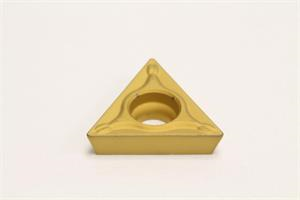

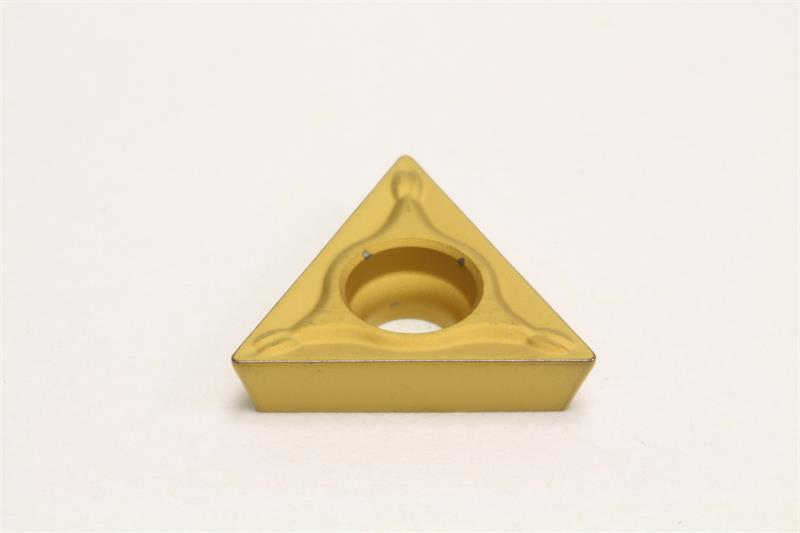

TPMT220.5 ESU AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT220.5ESU AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 220.5
Coating/Finish CVD
Shape Triangular
Number of Edges 3
Brand Sumitomo
Mounting Hole Diameter 0.1300 Inch
Rake Angle 8 Degree
Inscribed Circle 0.2500 Inch
Thickness 0.1250 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0078 Inch
Grade AC630M
Product Name Turning Insert
Relief Angle 11 Degree
Included Angle 60
Insert Style TPMT
Insert Type Positive
Chipbreaker Type ESU
Material Solid Carbide
