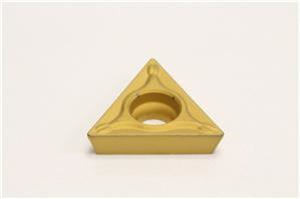

TPMT220.5 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT220.5ESU-AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 60
Brand Sumitomo
Product Name Turning Insert
Thickness 0.1250 Inch
Coating/Finish CVD
Insert Size 220.5
Material Solid Carbide
Chipbreaker Type ESU
Grade AC820P
Insert Type Positive
Number of Edges 3
Relief Angle 11 Degree
Mounting Hole Diameter 0.1300 Inch
Shape Triangular
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.2500 Inch
Corner Radius 0.0078 Inch
Insert Style TPMT
Rake Angle 8 Degree
