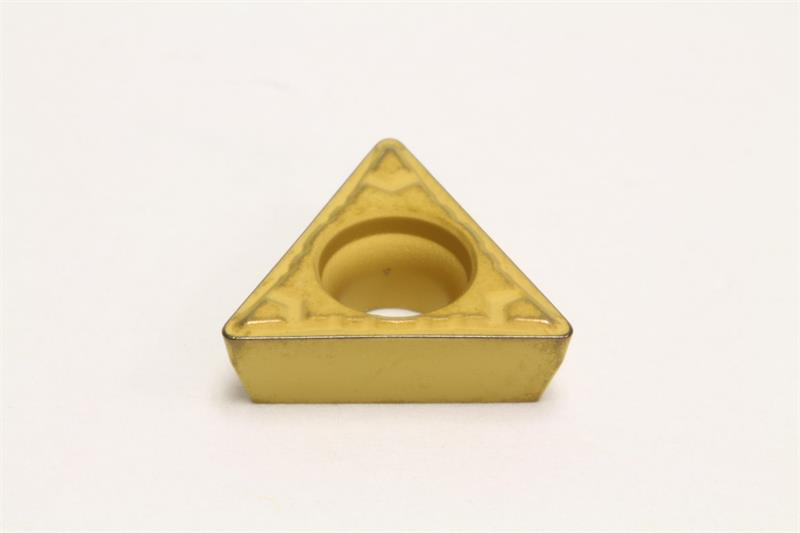

TPMT221 ELU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TPMT221ELU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC700G
Inscribed Circle 0.2500 Inch
Material Solid Carbide
Chipbreaker Type ELU
Corner Radius 0.0156 Inch
Insert Size 221
Number of Edges 3
Brand Sumitomo
Thickness 0.1250 Inch
Insert Style TPMT
Product Name Turning Insert
Relief Angle 11 Degree
Mounting Hole Diameter 0.1100 Inch
Shape Triangular
Coating/Finish Coated
Included Angle 60
Insert Type Positive
Rake Angle 12 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
