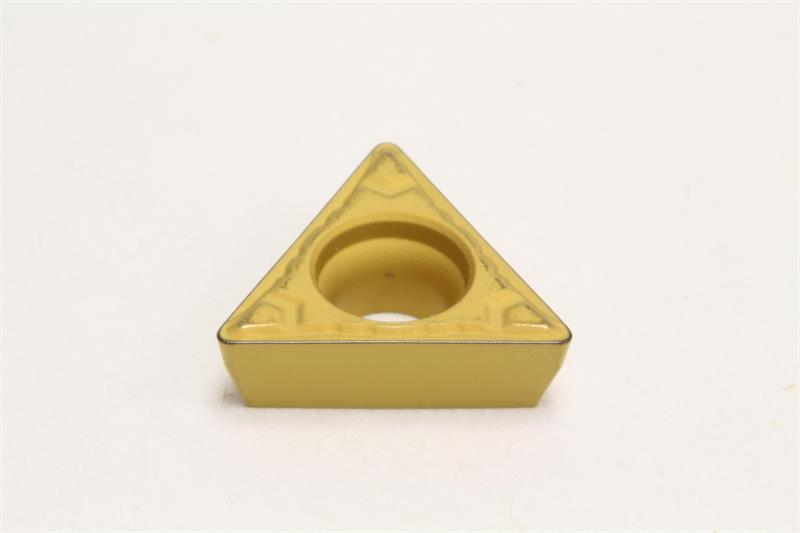

TPMT221 EMU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TPMT221EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EMU
Insert Size 221
Number of Edges 3
Corner Radius 0.0156 Inch
Brand Sumitomo
Included Angle 60
Mounting Hole Diameter 0.1300 Inch
Coating/Finish Coated
Grade AC700G
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Positive
Thickness 0.1250 Inch
Product Name Turning Insert
Rake Angle 0 Degree
Relief Angle 11 Degree
Shape Triangular
Inscribed Circle 0.2500 Inch
Insert Style TPMT
