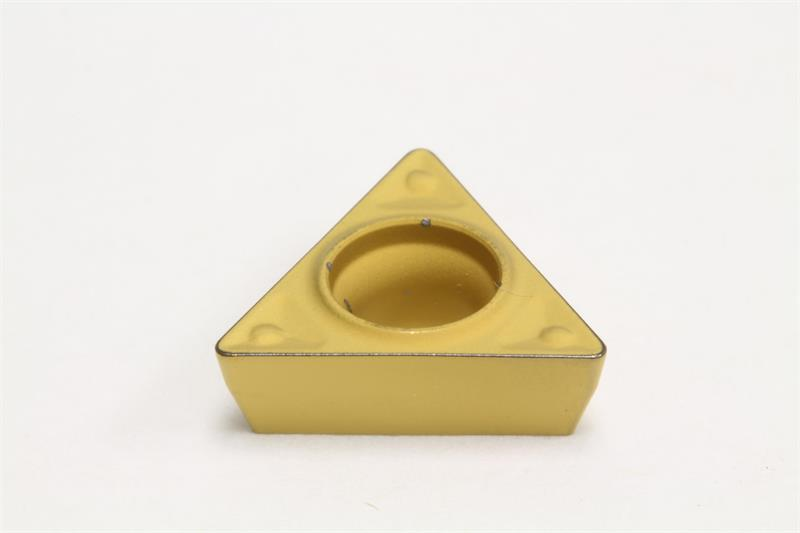

TPMT221 ENF AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT221ENF AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ENF
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Insert Size 221
Number of Edges 3
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Thickness 0.1250 Inch
Brand Sumitomo
Grade AC830P
Insert Type Positive
Relief Angle 11 Degree
Insert Style TPMT
Rake Angle 0 Degree
Shape Triangular
Included Angle 60
Material Solid Carbide
Mounting Hole Diameter 0.1300 Inch
