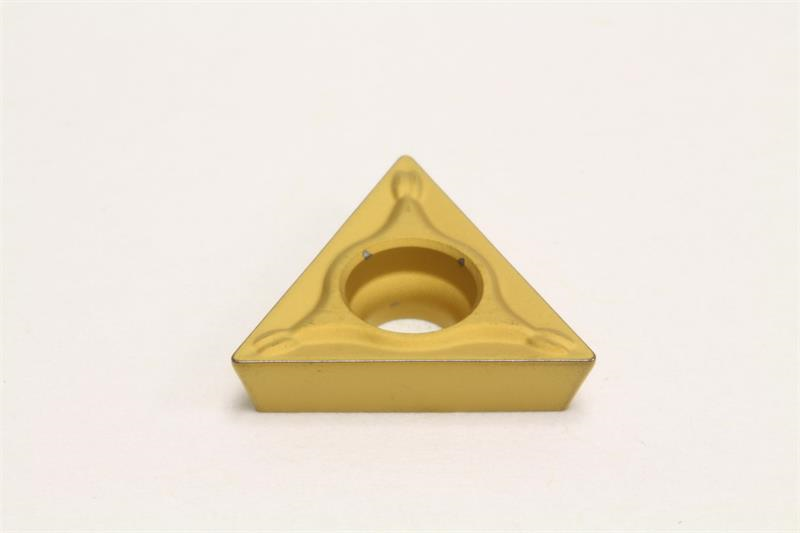

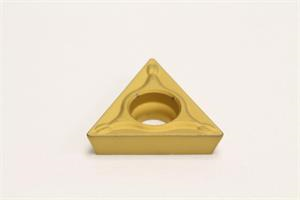

TPMT221 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT221ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style TPMT
Mounting Hole Diameter 0.1300 Inch
Rake Angle 8 Degree
Thickness 0.1250 Inch
Chipbreaker Type ESU
Coating/Finish CVD
Material Solid Carbide
Shape Triangular
Brand Sumitomo
Grade AC820P
Product Name Turning Insert
Relief Angle 11 Degree
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 60
Insert Size 221
Insert Type Positive
Number of Edges 3
