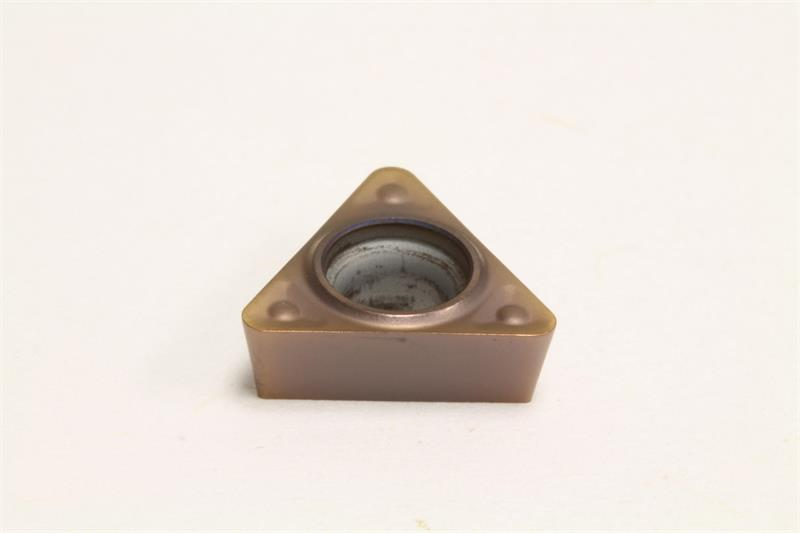

TPMT222 ENF AC510U Grade, TiN/AIN Coated, Carbide Turning Insert

  • Item Code: TPMT222ENF AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC510U
Number of Edges 3
Brand Sumitomo
Mounting Hole Diameter 0.1300 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type ENF
Coating/Finish PVD
Included Angle 60
Inscribed Circle 0.2500 Inch
Insert Style TPMT
Corner Radius 0.0313 Inch
Product Name Turning Insert
Rake Angle 0 Degree
Relief Angle 11 Degree
Shape Triangular
Insert Size 222
Insert Type Positive
Thickness 0.1250 Inch
Material Solid Carbide
