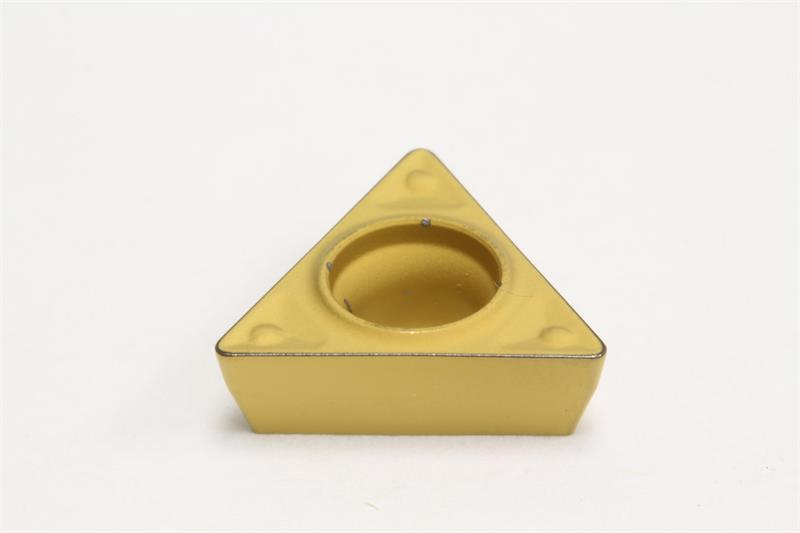

TPMT222 ENF AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TPMT222ENF AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Insert Type Positive
Relief Angle 11 Degree
Number of Edges 3
Product Name Turning Insert
Grade AC700G
Inscribed Circle 0.2500 Inch
Chipbreaker Type ENF
Insert Size 222
Thickness 0.1250 Inch
Corner Radius 0.0313 Inch
Included Angle 60
Rake Angle 0 Degree
Shape Triangular
Coating/Finish Coated
Material Solid Carbide
Mounting Hole Diameter 0.1300 Inch
Insert Style TPMT
