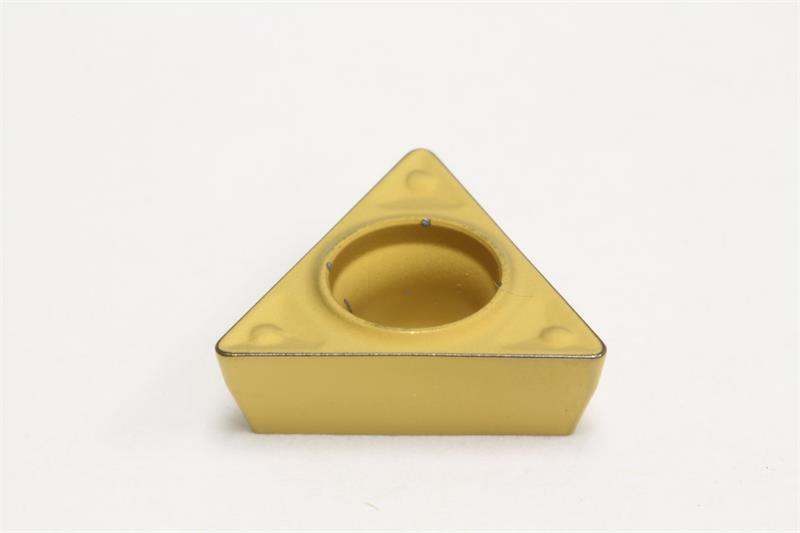

TPMT222 ENF AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT222ENF AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Rake Angle 0 Degree
Thickness 0.1250 Inch
Material Solid Carbide
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type ENF
Coating/Finish CVD
Insert Size 222
Inscribed Circle 0.2500 Inch
Included Angle 60
Insert Type Positive
Grade AC820P
Insert Style TPMT
Product Name Turning Insert
Relief Angle 11 Degree
Corner Radius 0.0313 Inch
Mounting Hole Diameter 0.1300 Inch
Shape Triangular
