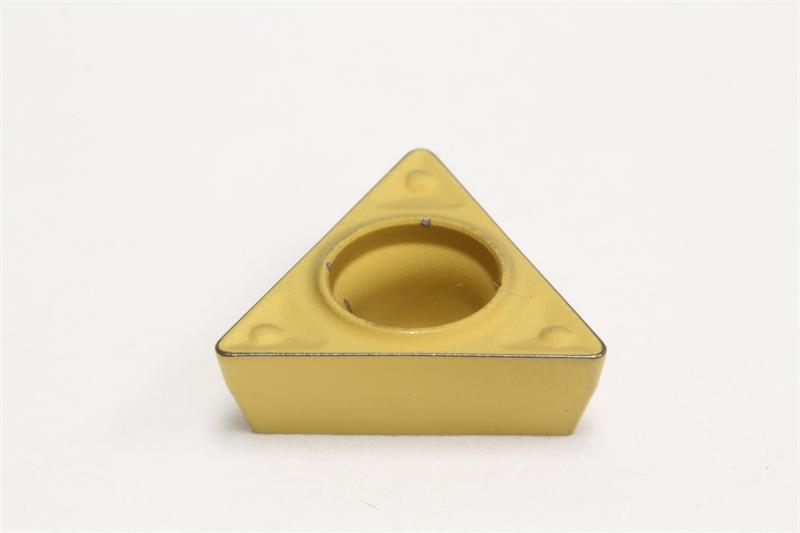

TPMT222 ENF AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT222ENF AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 60
Material Solid Carbide
Grade AC830P
Insert Type Positive
Relief Angle 11 Degree
Insert Size 222
Insert Style TPMT
Product Name Turning Insert
Rake Angle 0 Degree
Corner Radius 0.0313 Inch
Shape Triangular
Inscribed Circle 0.2500 Inch
Thickness 0.1250 Inch
Brand Sumitomo
Mounting Hole Diameter 0.1300 Inch
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type ENF
Coating/Finish CVD
