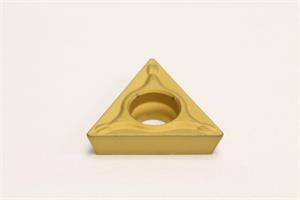

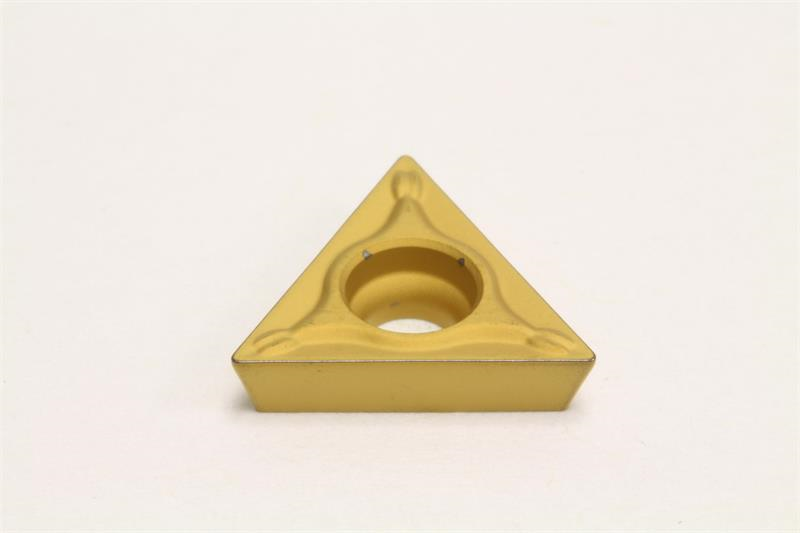

TMPT222 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT222ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Insert Type Positive
Relief Angle 11 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Shape Triangular
Insert Style TPMT
Product Name Turning Insert
Corner Radius 0.0313 Inch
Insert Size 222
Chipbreaker Type ESU
Material Solid Carbide
Number of Edges 3
Rake Angle 8 Degree
Brand Sumitomo
Included Angle 60
Mounting Hole Diameter 0.1300 Inch
Inscribed Circle 0.2500 Inch
Thickness 0.1250 Inch
