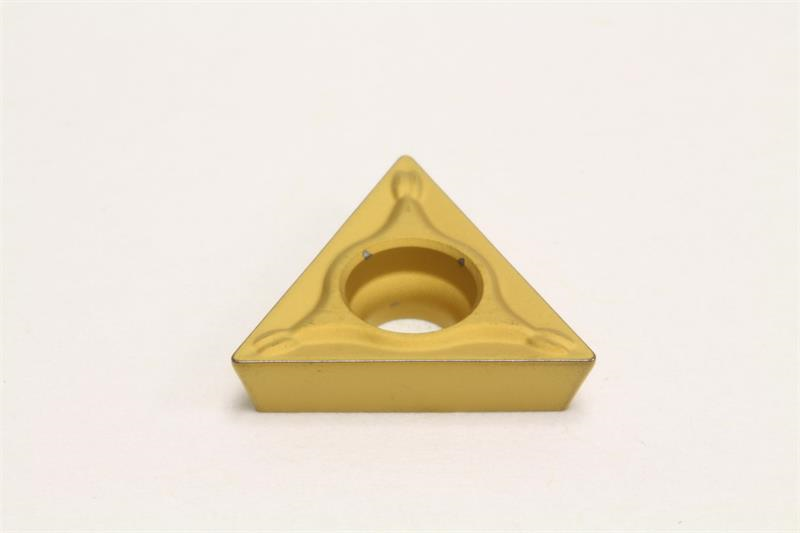

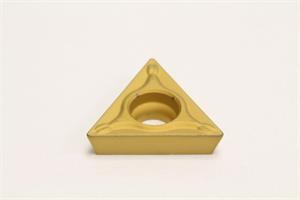

TMPT32.51 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT32.51ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style TPMT
Product Name Turning Insert
Included Angle 60
Insert Size 32.51
Grade AC820P
Insert Type Positive
Relief Angle 11 Degree
Thickness 0.0156 Inch
Chipbreaker Type ESU
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Inscribed Circle 0.3750 Inch
Material Solid Carbide
Number of Edges 3
Brand Sumitomo
Rake Angle 8 Degree
Corner Radius 0.0156 Inch
Mounting Hole Diameter 0.1693 Inch
Shape Triangular
