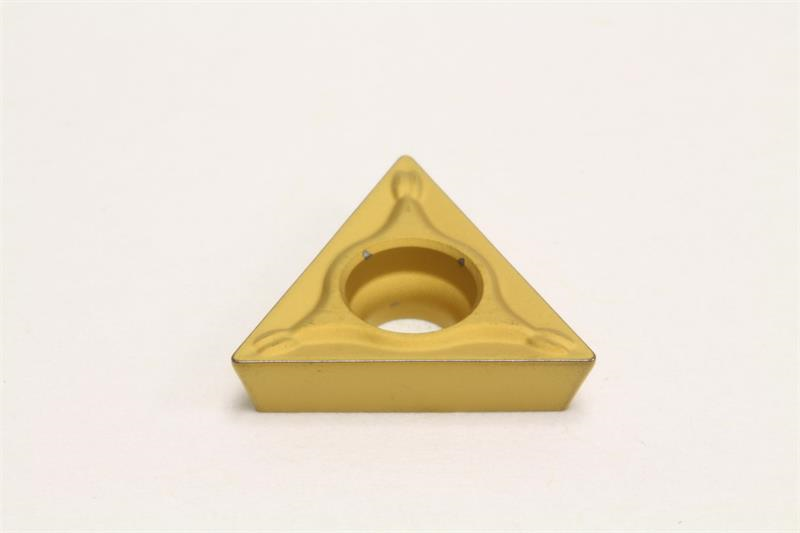

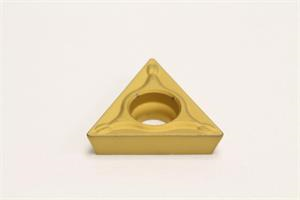

TMPT32.52 ESU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TPMT32.52ESU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Number of Edges 3
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Chipbreaker Type ESU
Grade AC700G
Material Solid Carbide
Coating/Finish Coated
Included Angle 60
Insert Type Positive
Insert Size 32.52
Insert Style TPMT
Product Name Turning Insert
Relief Angle 11 Degree
Corner Radius 0.0313 Inch
Mounting Hole Diameter 0.1693 Inch
Shape Triangular
