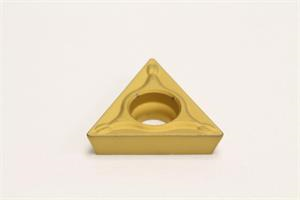

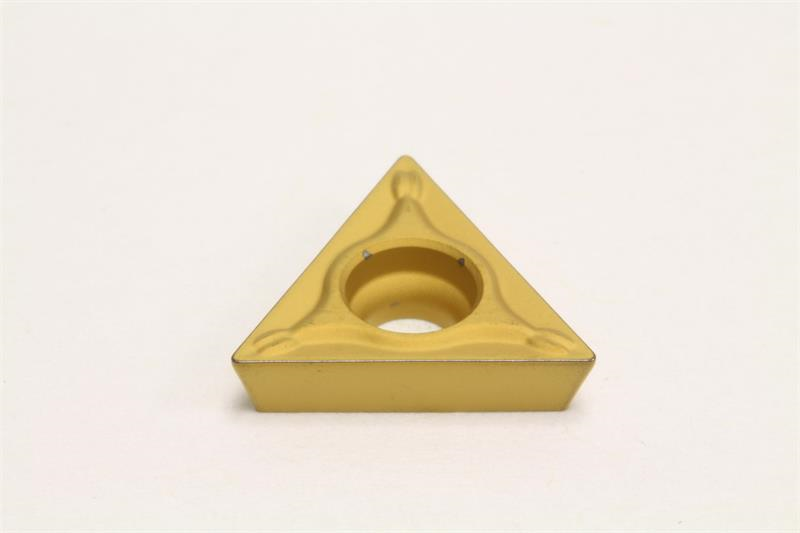

TPMT331 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT331ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Rake Angle 8 Degree
Material Solid Carbide
Number of Edges 3
Coating/Finish CVD
Chipbreaker Type ESU
Grade AC820P
Insert Size 331
Insert Type Positive
Relief Angle 11 Degree
Included Angle 60
Mounting Hole Diameter 0.1693 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style TPMT
Corner Radius 0.0156 Inch
Shape Triangular
