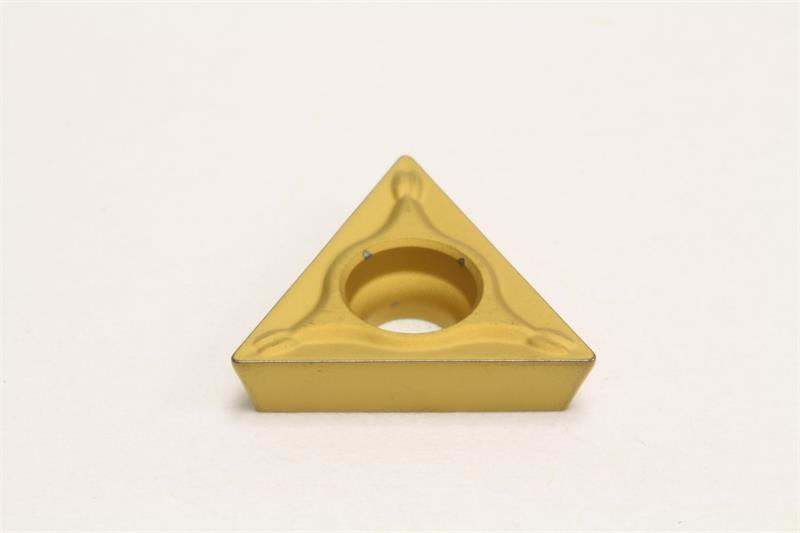

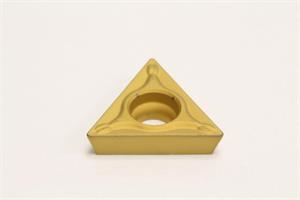

TPMT331 ESU AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT331ESU AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 60
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Coating/Finish CVD
Material Solid Carbide
Chipbreaker Type ESU
Grade AC830P
Insert Size 331
Insert Type Positive
Number of Edges 3
Relief Angle 11 Degree
Corner Radius 0.0156 Inch
Shape Triangular
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Mounting Hole Diameter 0.1693 Inch
Insert Style TPMT
Rake Angle 8 Degree
