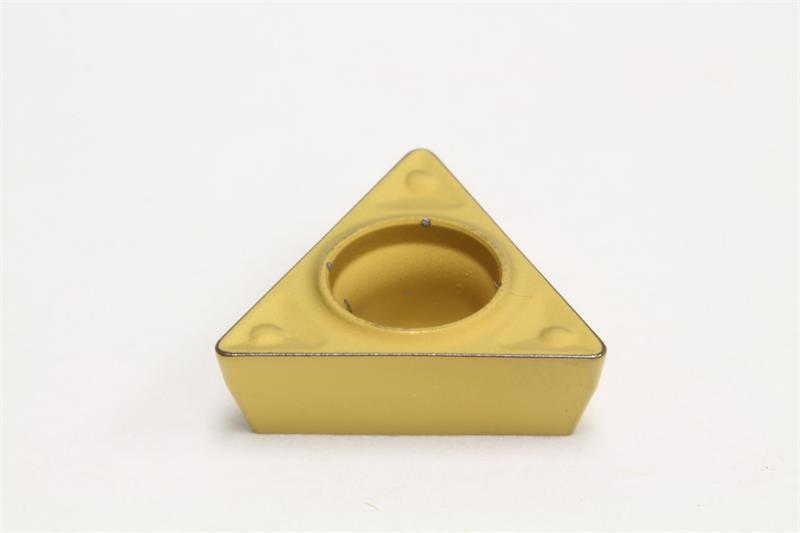

TPMT332 ENF AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TPMT332ENF AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish Coated
Grade AC700G
Included Angle 60
Shape Triangular
Insert Style TPMT
Mounting Hole Diameter 0.1693 Inch
Material Solid Carbide
Number of Edges 3
Chipbreaker Type ENF
Corner Radius 0.0313 Inch
Insert Size 332
Inscribed Circle 0.3750 Inch
Insert Type Positive
Thickness 0.1875 Inch
Brand Sumitomo
Product Name Turning Insert
Rake Angle 0 Degree
Relief Angle 11 Degree
