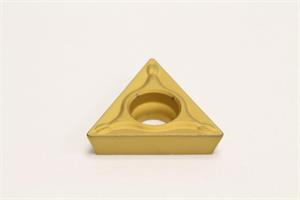

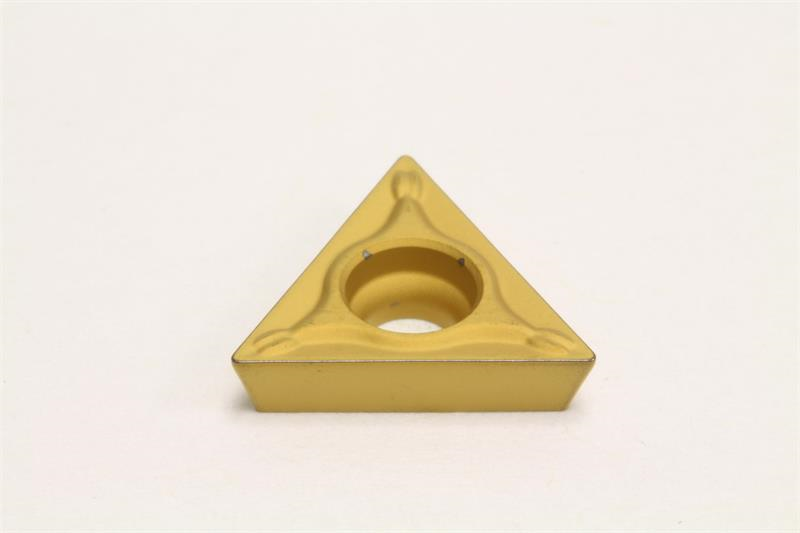

TPMT332 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT332ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Insert Type Positive
Relief Angle 11 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Shape Triangular
Included Angle 60
Insert Style TPMT
Mounting Hole Diameter 0.1693 Inch
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Insert Size 332
Brand Sumitomo
Chipbreaker Type ESU
Product Name Turning Insert
Number of Edges 3
Rake Angle 8 Degree
Material Solid Carbide
Inscribed Circle 0.3750 Inch
