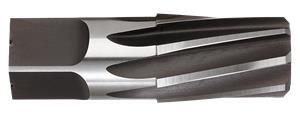

0.3620 in. Diameter x 0.3160 in. Minor Diameter x 0.7500 in. (3/4) Margin Length 6 Flute 6 Flute High Speed Steel Taper Pipe Reamer

  • Item Code: TR97650
  • Brand: Titan USA
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • General purpose reamers featuring a 45 deg. chamfer angle
    • 6 to 12 flute options
    • Spiral flutes for increased chip evacuation in blind hole applications
    • High speed steel
    • Precision manufactured in the USA

Tech Specs

Back To Top
Reamer Diameter 0.3620"
Minor Diameter 0.3160"
Coating None
Fractional Size 1/8"
Shank Diameter 0.4375" (7/16)
Material High Speed Steel
Brand Titan USA
Across Flat 0.3280" (21/64)
Margin Length 0.7500" (3/4)
Number of Flutes 6
