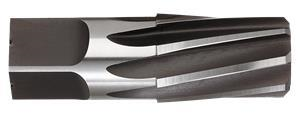

0.7510 in. Diameter x 0.6650 in. Minor Diameter x 1.3750 in. (1-3/8) Margin Length 6 Flute 6 Flute High Speed Steel Taper Pipe Reamer

  • Item Code: TR97653
  • Brand: Titan USA
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • General purpose reamers featuring a 45 deg. chamfer angle
    • 6 to 12 flute options
    • Spiral flutes for increased chip evacuation in blind hole applications
    • High speed steel
    • Precision manufactured in the USA

Tech Specs

Back To Top
Reamer Diameter 0.7510"
Minor Diameter 0.6650"
Number of Flutes 6
Fractional Size 1/2"
Material High Speed Steel
Across Flat 0.5150" (33/64)
Margin Length 1.3750" (1-3/8)
Coating None
Shank Diameter 0.6875" (11/16)
Brand Titan USA
