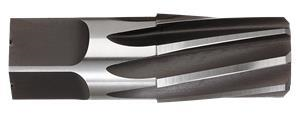

1.7930 in. Diameter x 1.6840 in. Minor Diameter x 1.7500 in. (1-3/4) Margin Length 2 Flute 12 Flute High 12 Flute Speed Steel Taper Pipe Reamer

  • Item Code: TR97657
  • Brand: Titan USA
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • General purpose reamers featuring a 45 deg. chamfer angle
    • 6 to 12 flute options
    • Spiral flutes for increased chip evacuation in blind hole applications
    • High speed steel
    • Precision manufactured in the USA

Tech Specs

Back To Top
Reamer Diameter 1.7930"
Minor Diameter 1.6840"
Brand Titan USA
Fractional Size 1-1/2"
Margin Length 1.7500" (1-3/4)
Shank Diameter 1.5000" (1-1/2)
Coating None
Material High Speed Steel
Number of Flutes 12
Across Flat 1.1250" (1-1/8)
