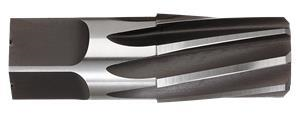

2.2680 in. Diameter x 2.1590 in. Minor Diameter x 1.7500 in. (1-3/4) Margin Length 12 Flute 2 Flute 12 Flute High Speed Steel Taper Pipe Reamer

  • Item Code: TR97658
  • Brand: Titan USA
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • General purpose reamers featuring a 45 deg. chamfer angle
    • 6 to 12 flute options
    • Spiral flutes for increased chip evacuation in blind hole applications
    • High speed steel
    • Precision manufactured in the USA

Tech Specs

Back To Top
Reamer Diameter 2.2680"
Minor Diameter 2.1590"
Shank Diameter 1.8750" (1-7/8)
Brand Titan USA
Margin Length 1.7500" (1-3/4)
Size 2
Coating None
Number of Flutes 12
Material High Speed Steel
Across Flat 1.4060" (1-13/32)
