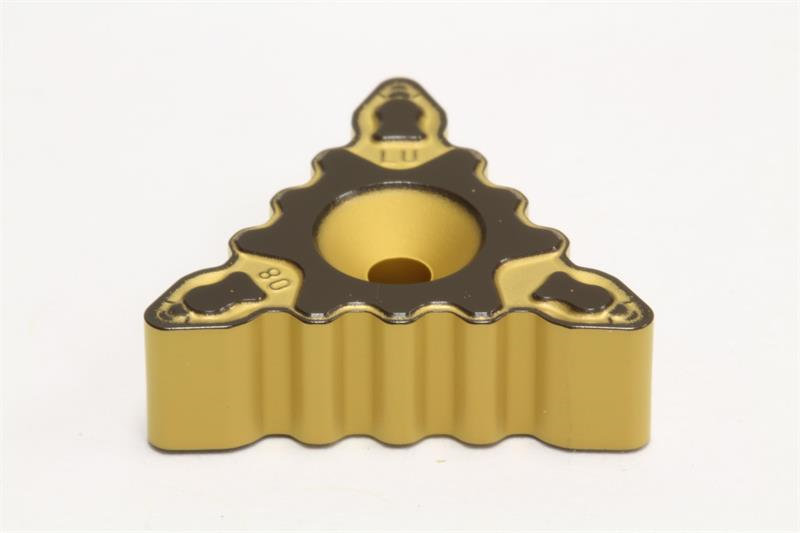

TRM551704 LU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TRM551704LU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type LU
Insert Size 551704
Brand Sumitomo
Insert Type Negative
Included Angle 55
Number of Edges 3
Grade AC700G
Inscribed Circle 0.3940 Inch
Material Solid Carbide
Product Name Turning Insert
Thickness 0.1970 Inch
Corner Radius 0.0156 Inch
Shape Triangular
Coating/Finish Coated
Insert Style TRM
Rake Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Mounting Hole Diameter 0.0840 Inch
