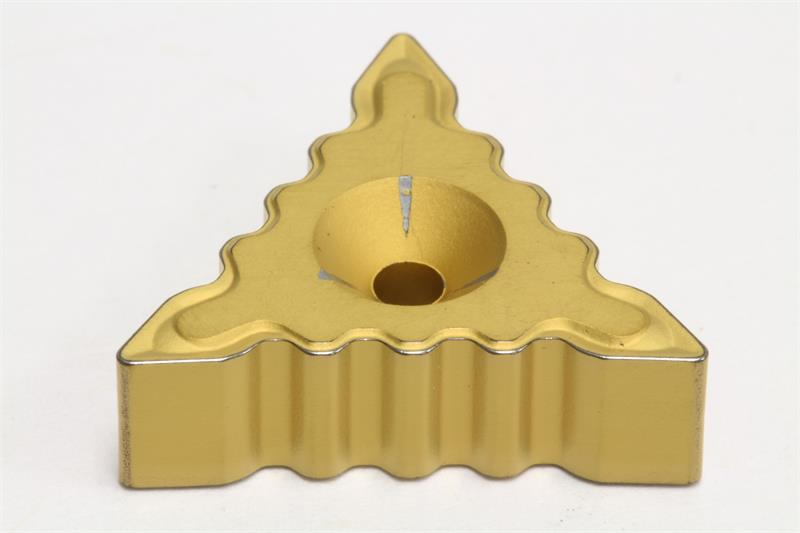

TRM551708 GU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TRM551708GU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type GU
Inscribed Circle 0.3940 Inch
Coating/Finish Coated
Included Angle 55
Insert Style TRM
Insert Type Negative
Product Name Turning Insert
Thickness 0.1970 Inch
Grade AC700G
Insert Size 551708
Rake Angle 7 Degree
Brand Sumitomo
Corner Radius 0.0313 Inch
Shape Triangular
Material Solid Carbide
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Mounting Hole Diameter 0.0840 Inch
