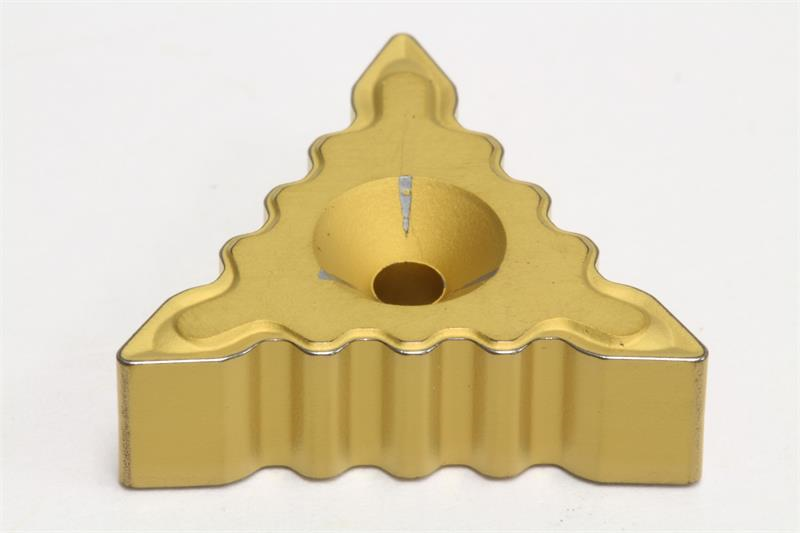

TRM551708 GU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TRM551708GU-AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.0840 Inch
Thickness 0.1970 Inch
Insert Size 551708
Product Name Turning Insert
Rake Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade AC820P
Insert Type Negative
Brand Sumitomo
Chipbreaker Type GU
Included Angle 55
Material Solid Carbide
Number of Edges 3
Corner Radius 0.0313 Inch
Insert Style TRM
Shape Triangular
Inscribed Circle 0.3940 Inch
Coating/Finish CVD
