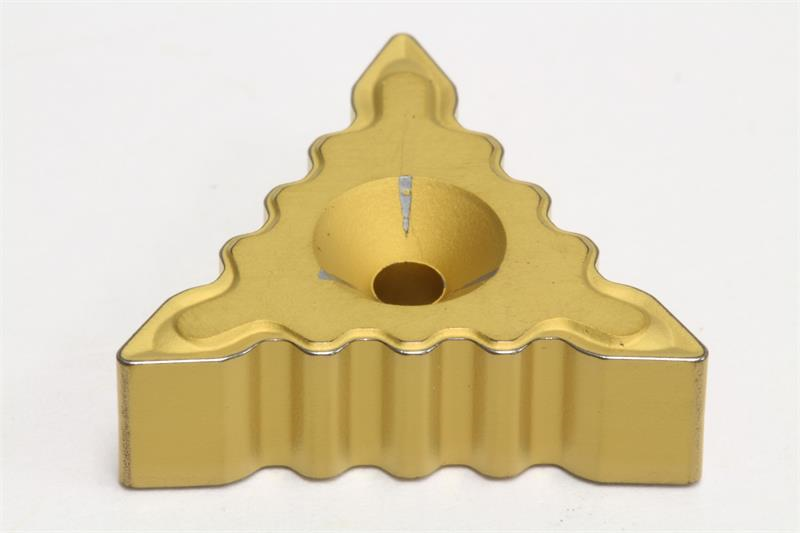

TRM551712 GU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TRM551712GU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 551712
Number of Edges 3
Mounting Hole Diameter 0.0840 Inch
Brand Sumitomo
Corner Radius 0.0469 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 55
Insert Style TRM
Product Name Turning Insert
Shape Triangular
Inscribed Circle 0.3940 Inch
Insert Type Negative
Rake Angle 7 Degree
Thickness 0.1970 Inch
Chipbreaker Type GU
Coating/Finish Coated
Grade AC700G
Material Solid Carbide
