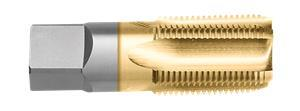

1/8-27 Size x 0.7500 in. (3/4) Thread Length x 0.4375 in. (7/16) Shank Diameter 4 Flute TiN Coated High Speed Steel Straight Pipe Tap

  • Item Code: TT94201TIN
  • Brand: Titan USA
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • General purpose straight pipe taps
    • Taps are on blanks that meet ANSI specifications
    • TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
    • High speed steel
    • CNC ground in the USA

Tech Specs

Back To Top
Coating TiN
Material High Speed Steel
Shank Diameter 0.4375" (7/16)
Type NPS
Brand Titan USA
Number of Flutes 4
End Length 0.3750" (3/8)
Length of Cut 0.7500" (3/4)
Across Flat 0.3280" (21/64)
