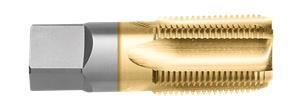

1/4-18 Size x 1.0625 in. (1-1/16) Thread Length x 0.5625 in. (9/16) Shank Diameter 4 Flute TiN Coated High Speed Steel Straight Pipe Tap

  • Item Code: TT94202TIN
  • Brand: Titan USA
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • General purpose straight pipe taps
    • Taps are on blanks that meet ANSI specifications
    • TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
    • High speed steel
    • CNC ground in the USA

Tech Specs

Back To Top
End Length 0.4375" (7/16)
Material High Speed Steel
Coating TiN
Across Flat 0.4210"
Length of Cut 1.0625" (1-1/16)
Shank Diameter 0.5625" (9/16)
Type NPS
Brand Titan USA
Number of Flutes 4
