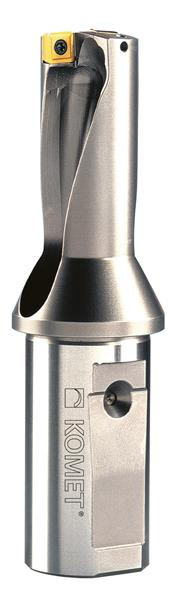

1.417 Inch Max Drill Depth, 2xD, 11/16 Inch Diameter, Indexable Drill Insert
- Item Code: U11 21753
- Brand: Komet
- Unit Size: 1
Description
2 Inserts, Straight Shank, 3/4 Inch Shank Diameter
Tech Specs
Back To Top| Body Length | 2.3620 Inch |
|---|---|
| Overall Length | 4.6120 Inch |
| Maximum Drill Depth | 1.4170 Inch |
| Series | KUB Quatron |
| Cutting Direction | Right Hand |
| Shank End Coolant Hole Thread Size | 1/8 Inch |
| Type | Indexable Insert Drill |
| Maximum Drill Diameter | 0.706 Inch |
| Number of Drill Inserts | 2 |
| Drill Depth by Diameter Ratio | 2xD |
| Drill Style | U11 |
| Insert Compatibility | SOEX 050204 |
| Product Type | Indexable Drill |
| Brand | Komet |
| Shank Type | Straight |
| Coolant Hole Thread Type | NPT |
| Drill Diameter | 11/16 Inch |
| Shank Length | 2.2500 Inch |
| Shank Diameter | 3/4 Inch |
